HADCO TSS693-22 STAINLESS STEEL LOW VOLTAGE LANDSCAPE LIGHTING TRANSFORMER, 600W

Features:

• Low Voltage Landscape Transformer (12 VAC).

• 600-Watt - (2) 300-Watt Circuits.

• 12V, 13V, 14V, 15V, 17V, 20V, 22V (VAC) output taps.

• Stainless Steel Construction

• 17-5/8" Height x 6-3/16" Width x 6-3/4" Depth

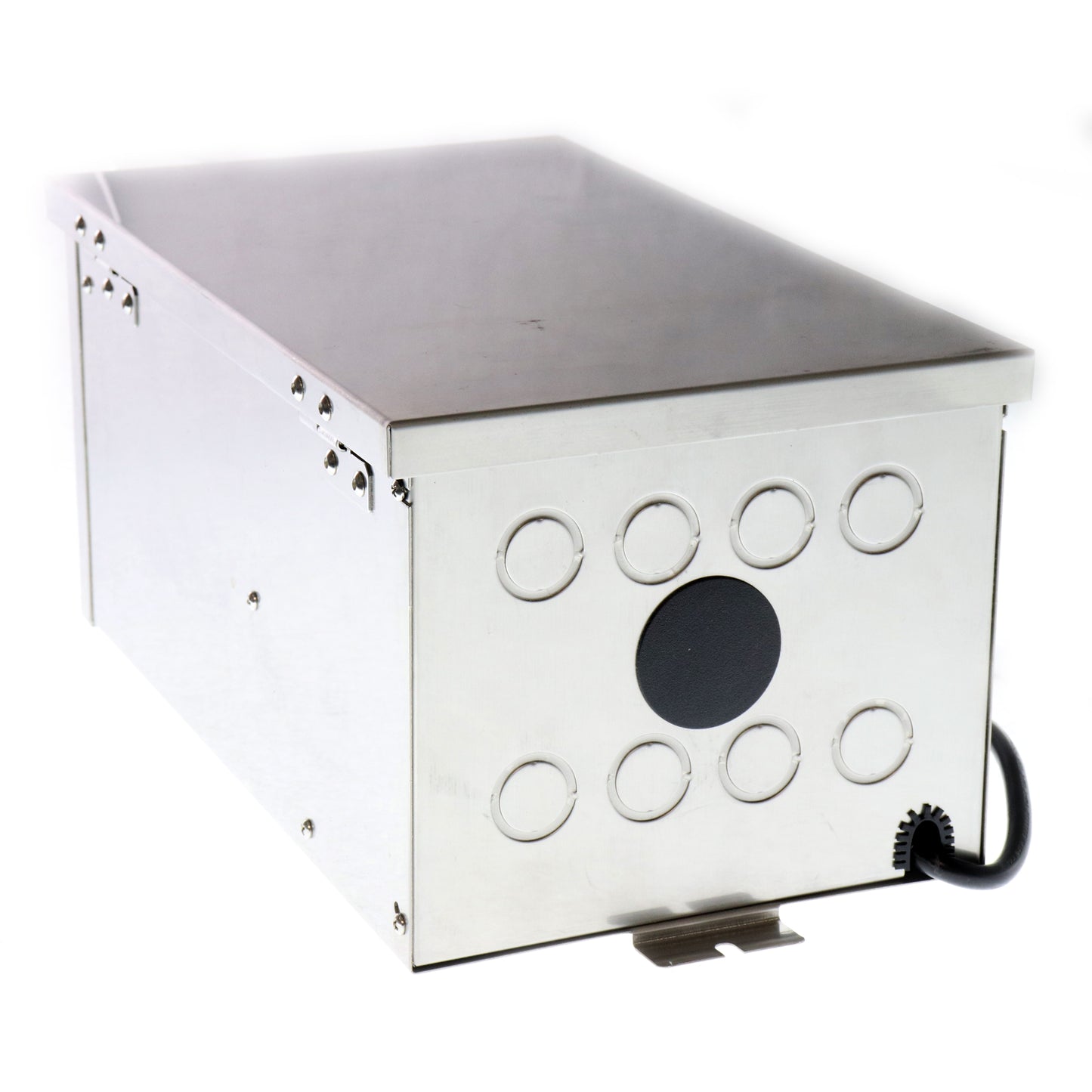

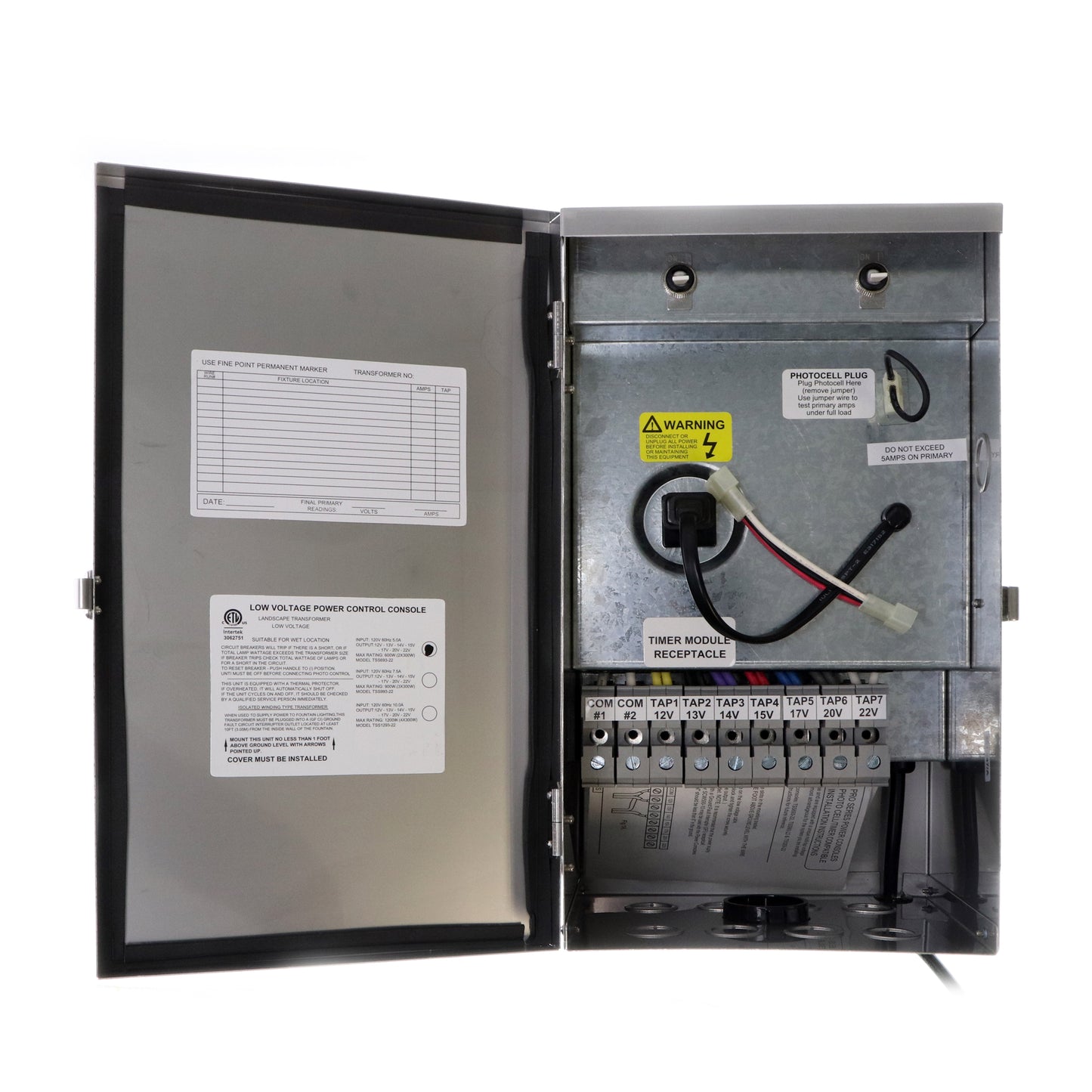

• Housing is 304 brushed stainless steel case with stainless steel screws and lockable captive door, hinged on side. ½" Knockout on one side for hardwiring or accessory mounting. Weather-proof compartment for plug-in time clock and photo cell (Not Included). 6-ft heavy-duty 18-3 AWG, 105° C, SJT power cord with 3 prong grounded wall plug. Large wiring compartment. Large terminal blocks to accommodate up to four (4) #10 wires. Epoxy encapsulated toroidal transformer with built-in primary thermal protection. Magnetic circuit breaker for each 300W secondary circuit. 12V, 13V, 14V, 15V, 17V, 20V, and 22V output taps. Three (3) ½" knockouts for low-voltage exit, on bottom of housing. Handles 600 watts. 22 Volt Transformers are dimmable. ETL listed to U.S. safety standards for wet locations. cETL listed to Canadian safety standards for wet locations. Manufactured to ISO 9001:2008 Standards. Height : 17 5/8" (448mm) Width: 6 3/16" (157mm) Depth: 6 3/4" (171mm). Multiple voltage outputs: 12-VAC, 13-VAC, 14-VAC, 15-VAC, 17-VAC, 20-VAC, and 22-VAC output taps to accommodate voltage drop over longer cable runs to fixtures. Ideal for low voltage landscape / pool halogen lighting or 12VAC LED retrofit lamped light fixtures or similar equipment. THIS TRANSFORMER WILL NOT OPERATE VDC (DIRECT-CURRENT) apparatus or equipment.

Color: Silver

Condition: New

Dims: 6.20-Inches x 6.80-Inches x 17.60-Inches (Length Width Height)

Model: TSS693-22

Package quantity: 1

VWA: 120-Volt 600-Watts 20-Amps
