LIGHTOLIER OPT43000EB7 OPTIO MARK-10 QUICKTRONIC SENSING DIMMING MODULE
LIGHTOLIER OPT43000EB7 OPTIO MARK-10 QUICKTRONIC SENSING DIMMING MODULE
$1,83749
Save $587.50
Request Special Pricing
Thank you for your message! We will get back to you as soon as possible.
Couldn't load pickup availability
Product information

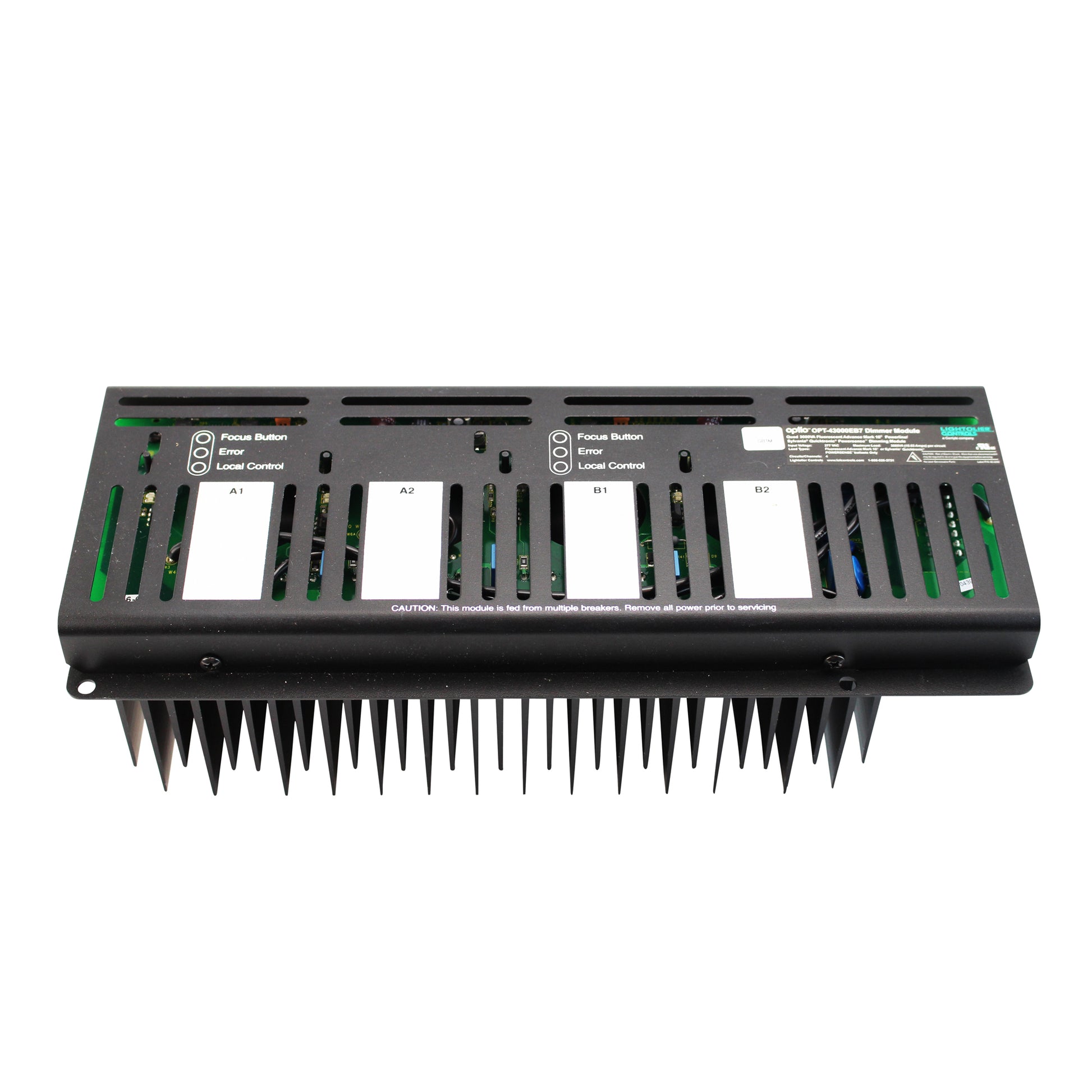

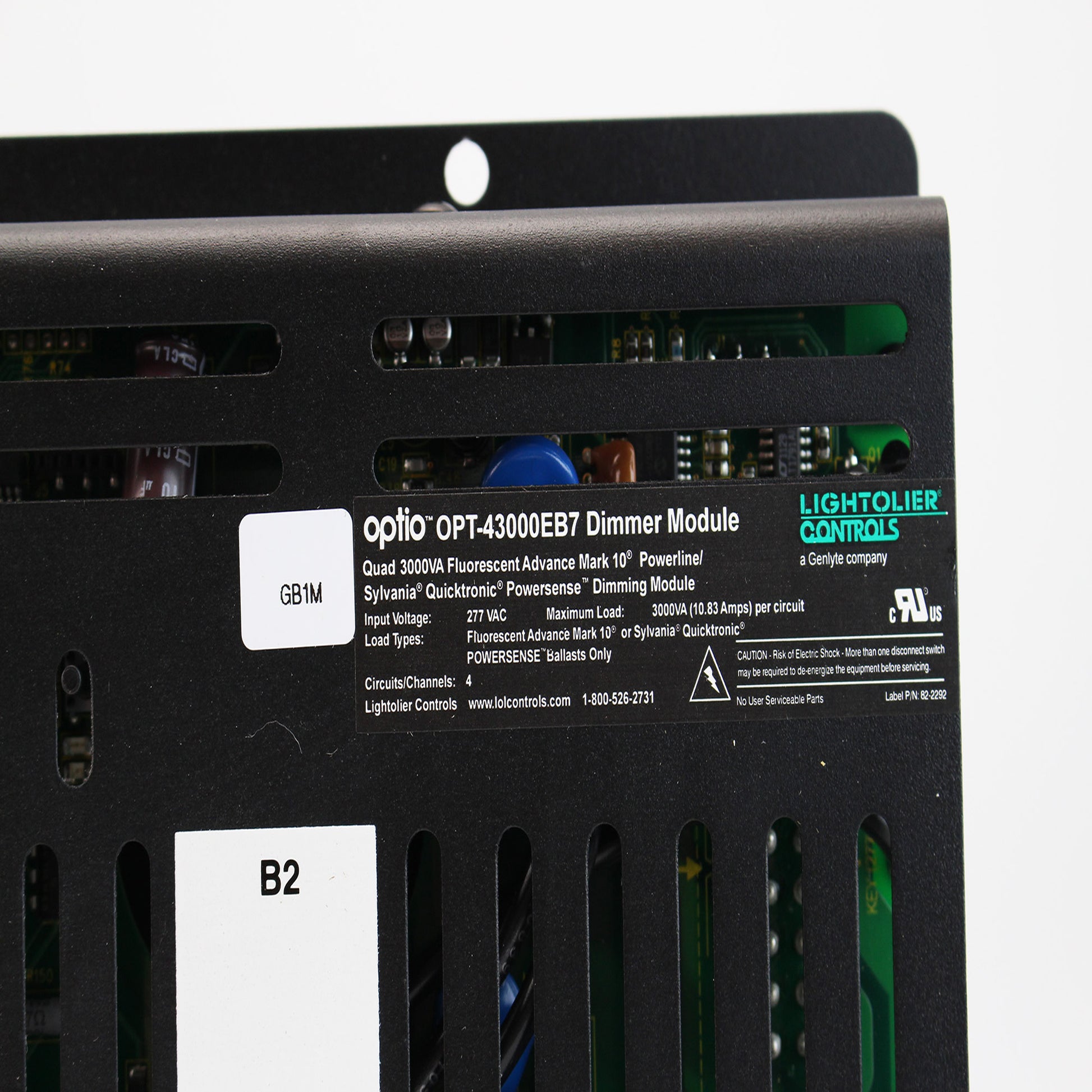

Optio™ OPT43000EB7 Dimmer Modules contain four high-quality dimmers. Each dimmer employs solid-state Silicon Controlled Rectifier (SCR) devices which are rated at no less than double the dimmer's rated capacity. They are c.U.L. recognized and rated for operation at 277VAC, with a capacity of 3000VA each. The module is ruggedly designed, fully enclosed module. Modules are easily installed into an Optio™ Lighting Control Panel, and may be easily interchanged with other Optio™ modules.Features:
- Four circuits rated at 3000VA each
- Designed to dim Mark 10 Fluorescent Dimming Ballasts
- Local 'Focus' button allows manual operation of dimmer circuit
- Dual-color LED indicators provide status information
- Mounts into any Optio™ 277VAC Lighting Control Panel
- Optio™ OPT43000EB7 Dimmer Modules contain four high-quality dimmers. Each dimmer employs solid-state Silicon Controlled Rectifier (SCR) devices which are rated at no less than double the dimmer's rated capacity. They are c.U.L. recognized and rated for operation at 277VAC, with a capacity of 3000VA each. The module is ruggedly designed, fully enclosed module. Modules are easily installed into an Optio™ Lighting Control Panel, and may be easily interchanged with other Optio™ modules.
Color: Black
Condition: New
Dims: -Inches x -Inches x -Inches (Length Width Height)
Model: OPT43000EB7
Package quantity: 1
VWA: 277-Volt
