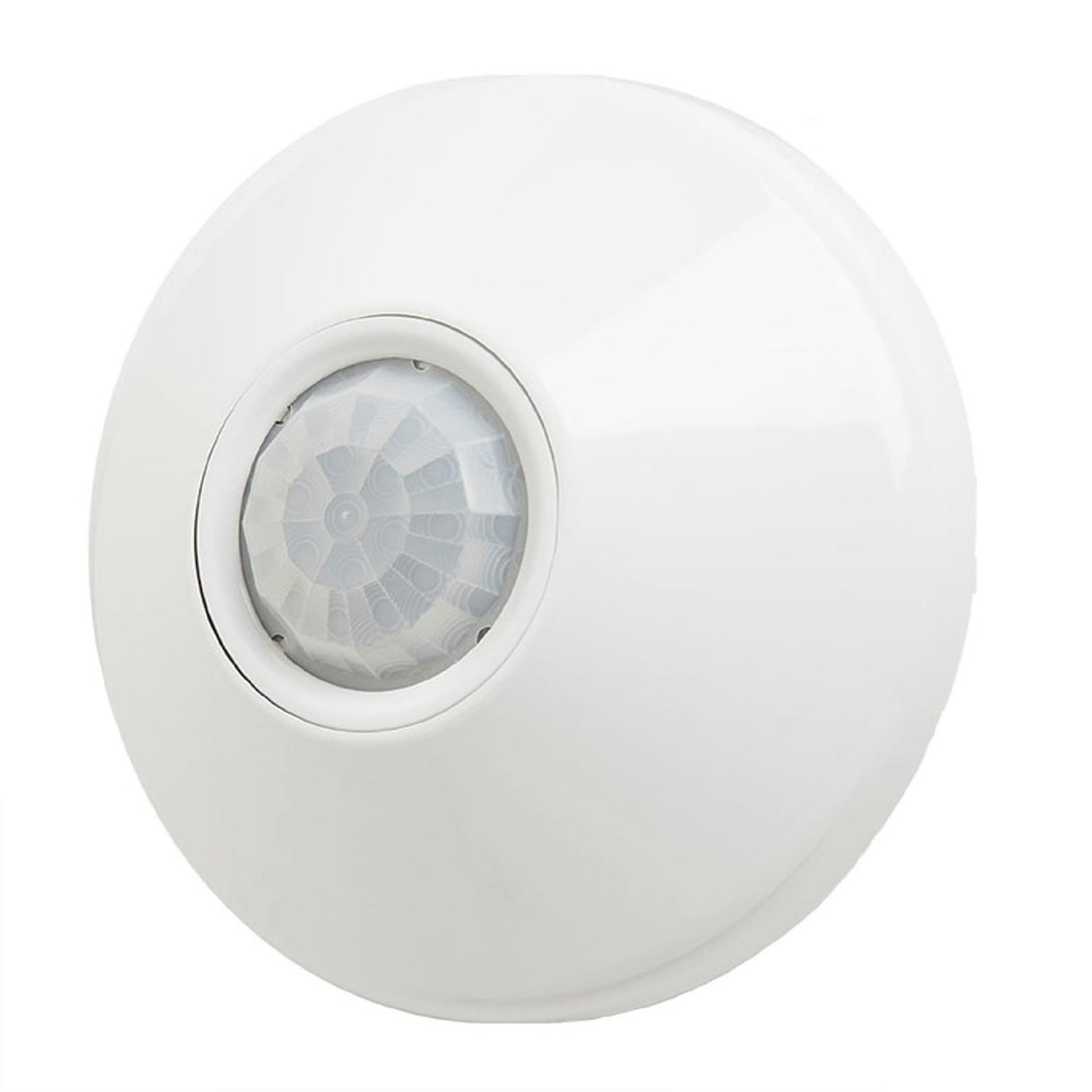

SENSOR SWITCH CMR-6-SH-36L HIGH BAY 360° OCCUPANCY SENSOR, PIR, WHITE

Features:

• PIR Occupancy Detection

• Up to 45 ft Mounting, 360 Degree Coverage

• Time Delay: 30 sec to 20 min

• Self-Contained Relay - No Power Pack needed

• START-TO-HIGH TIMER (SH) Upon power up sensor holds light on and high for 20 min


• Designed for mounting heights of up to 45 ft, the CMR 6 High Bay 360º sensor provides Passive Infrared (PIR) occupancy detection over a 15-20 ft radial coverage pattern that overlaps the areas lit by a typical high bay fixture. This line voltage sensor switches loads directly without the need for a power pack. The CMR 6 sensor is ideal for individual on/off control of T5/T8 fluorescent lighting. HID bi-level lighting can also be controlled when the Start-to-High (-SH) option is added to the CMR 6. For multiple fixture control, multiple low voltage CM 6, CM 50, and/or HM 10 Series High Bay sensors and power packs are recommended. For lower mounting height applications, CMR 9 or CMR 10 Series sensors are recommended.

Color: White

Condition: New

Dims: -Inches x -Inches x 1.5-Inches (Length Width Height)

Model: CMR-6-SH-36L

Package quantity: 1
