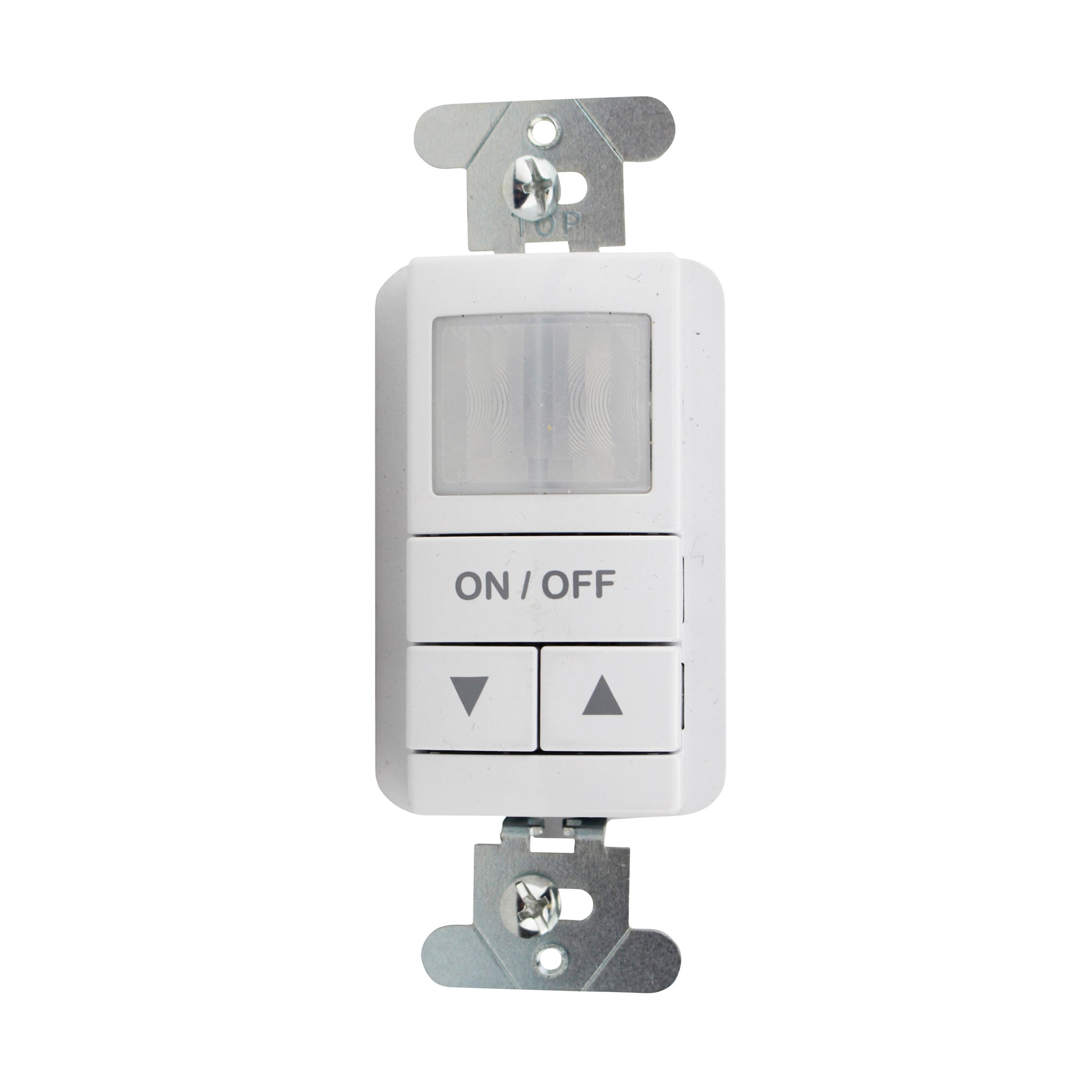

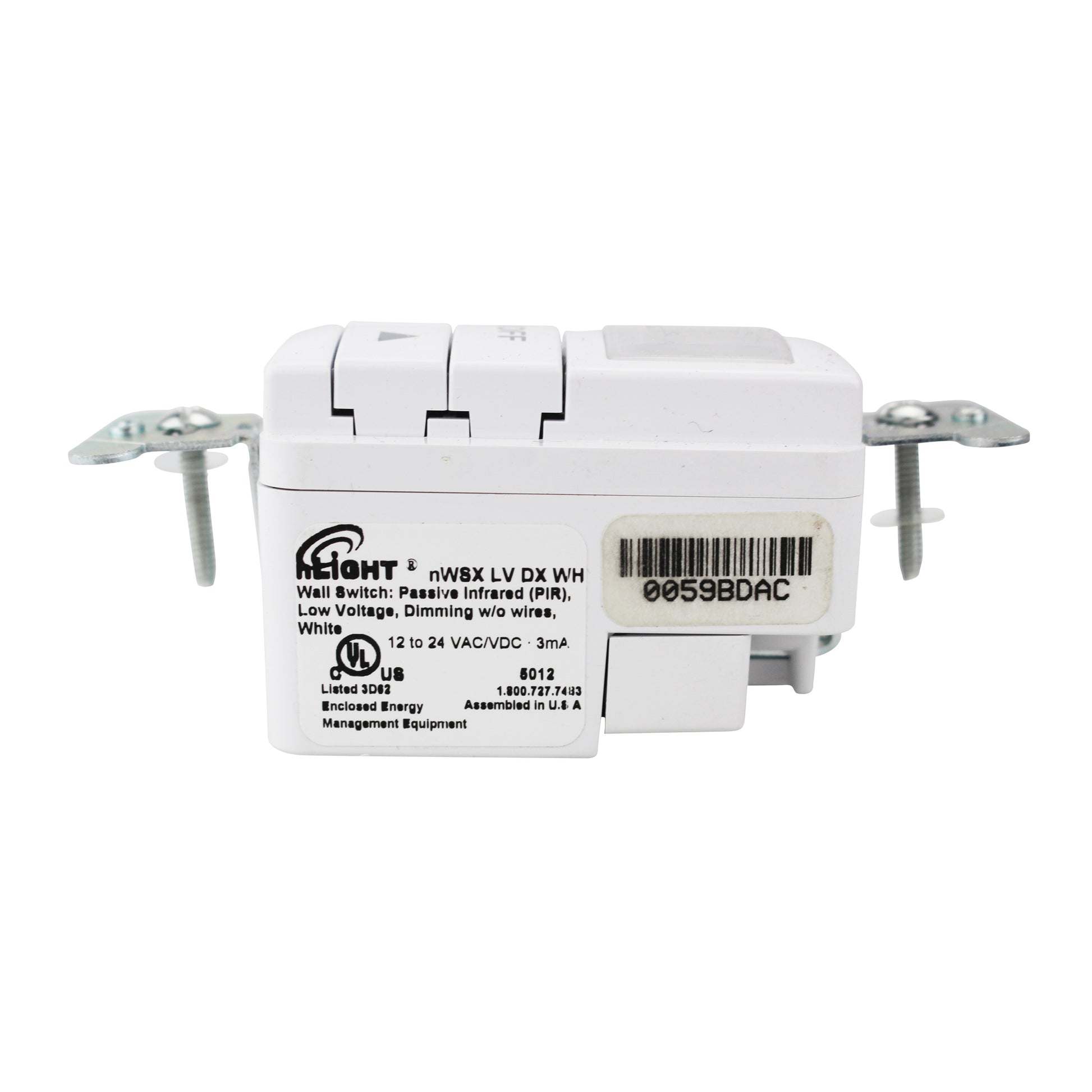

SENSOR SWITCH NWSX-LV-DX-WH PIR LITHONIA WALL SWITCH SENSOR, SMALL MOTION, WHITE

Features:

• nLight wall switch sensor, Dual Technology, Low Voltage, Occupancy controlled dimming without dimming output, White

• Passive Infrared Sensor

• Wall/1-Gang Switch Box

• Automatic ON/Automatic OFF, Manual ON, Automatic ON, Predictive OFF Switch

• 12 to 24 VAC/ VDC 2mA


• Lithonia Lighting / Acuity nLigt® Low voltage wall switch sensor in white color features dual technology that helps in optimum detection. It is push-button programmable and supports multiple operating modes. It has photocell that helps in turning OFF light, when there is adequate light. It has LED indicator that helps in detecting status and has multiple operating modes with adjustable time delays. It measures 1.680 Inch x 1.630 Inch x 2.740 Inch. It can be used in three-way configuration without traveler wires. It helps in raising/lowering control of any light device along with dimming output. It is suitable for use in private rooms, restroom, hotel, conference room and stairwall. It is mounted to 1-Gang switch box/low voltage ring. It has operating temperature of 14 to 160 deg F. It supports multi-level operating mode that is ideal for bi-level applications and offers a timer range of 10 minutes. It has small detection of up to 20 ft and large detection greater than 36 ft. The light operation can communicate with network enabled devices like wall switches, power packs, digital luminaires and other sensors. The device is connected using cat-5e cable. It supports manual ON/OFF switching modes. Sensor is UL listed, CSA certified and is RoHS compliant.

Color: White

Condition: New

Dims: 1.6-Inches x 1.6-Inches x 2.8-Inches (Length Width Height)

Model: NWSX-LV-DX-WH

Package quantity: 1
