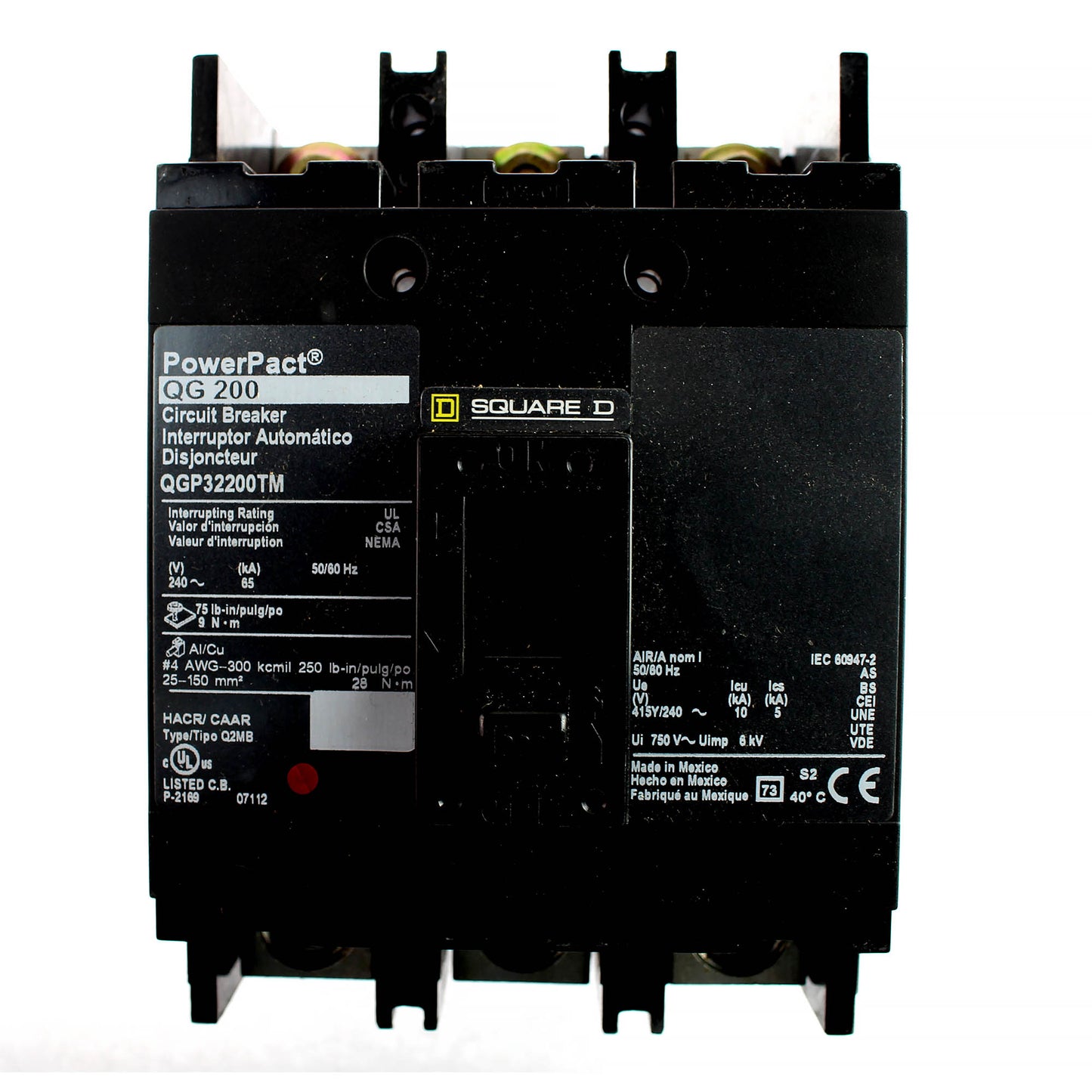

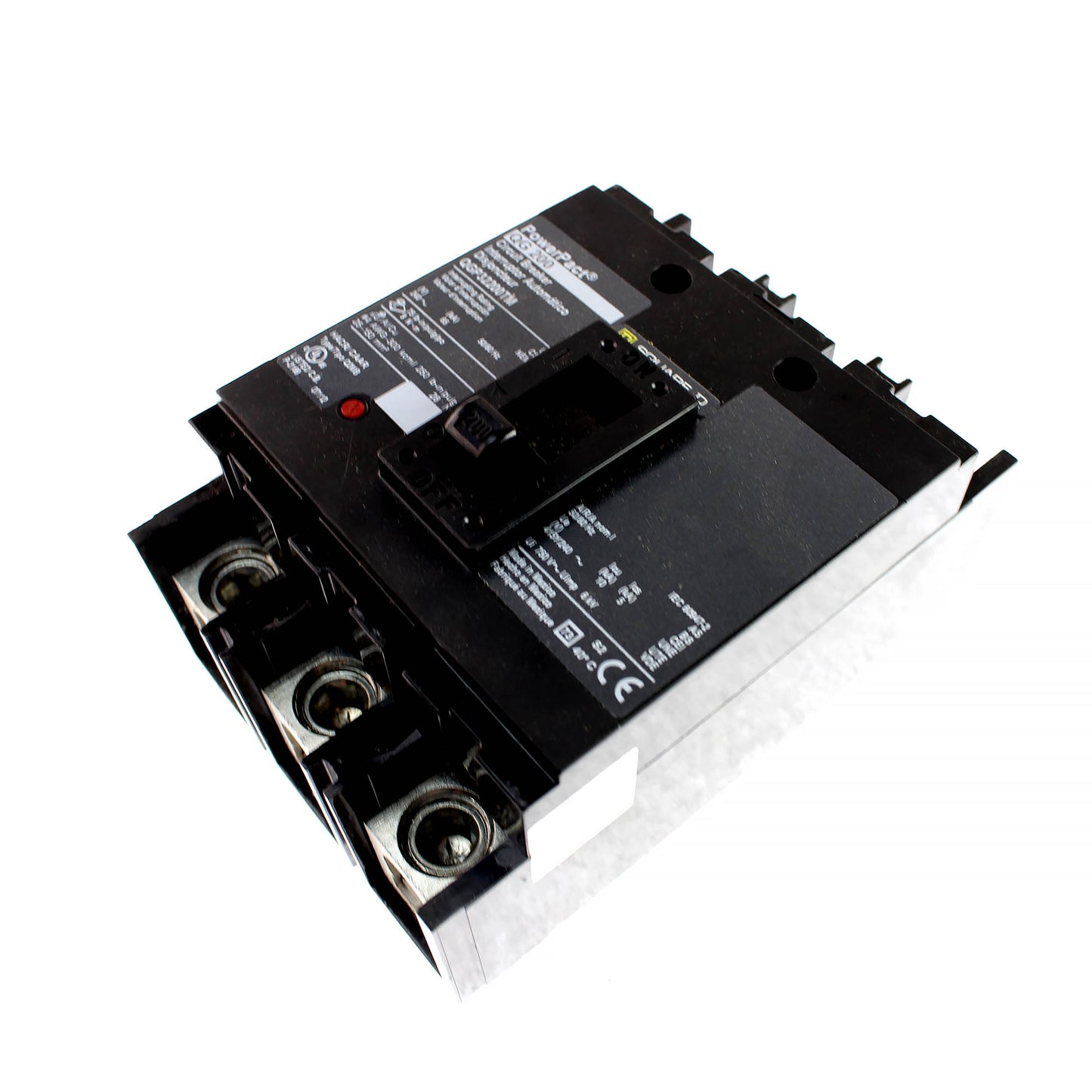

SQUARE D QGP32200TM POWERPACT CIRCUIT BREAKER, QGP TYPE, 200-AMP, 3-POLE, 240V
SQUARE D QGP32200TM POWERPACT CIRCUIT BREAKER, QGP TYPE, 200-AMP, 3-POLE, 240V
$1,91378
Save $818.28
Request Special Pricing
Couldn't load pickup availability
Product information
Schneider Electric/Square D PowerPact® QGP 3-Pole Molded case circuit breaker has Q-frame. It can be used for power distribution, load side lug terminals and has thermal magnetic tripping method. It measures 4.500 Inch x 3.930 Inch x 6.470 Inch and has bolt-on type connection. It can accommodate aluminum/copper lugs of size 4 - 300 AWG/kcmil. It has a current rating of 200 Amps and voltage rating of 240 VAC at 50/60 Hz. The 3-Phase circuit breaker has an interrupt rating of 65 kilo-Amps at 120/240 VAC. Circuit breaker is UL listed/CSA approved/IEC rated and meets NOM, Fed. Specs W-C-375B/GEN standards.Features:
- 200A
- 240V
- Thermal-magnetic circuit breakers use bimetals and electromagnetic assemblies to provide overcurrent protection
- Their characteristic inverse time tripping under overload conditions is ideally suited for many applications varying from residential to heavy industrial loads
- 3 Pole
- Schneider Electric/Square D PowerPact® QGP 3-Pole Molded case circuit breaker has Q-frame. It can be used for power distribution, load side lug terminals and has thermal magnetic tripping method. It measures 4.500 Inch x 3.930 Inch x 6.470 Inch and has bolt-on type connection. It can accommodate aluminum/copper lugs of size 4 - 300 AWG/kcmil. It has a current rating of 200 Amps and voltage rating of 240 VAC at 50/60 Hz. The 3-Phase circuit breaker has an interrupt rating of 65 kilo-Amps at 120/240 VAC. Circuit breaker is UL listed/CSA approved/IEC rated and meets NOM, Fed. Specs W-C-375B/GEN standards.
Color: Black
Condition: New
Dims: -Inches x -Inches x -Inches (Length Width Height)
Model: QGP32200TM
Package quantity: 1
VWA: 240-Volt 200-Amps
