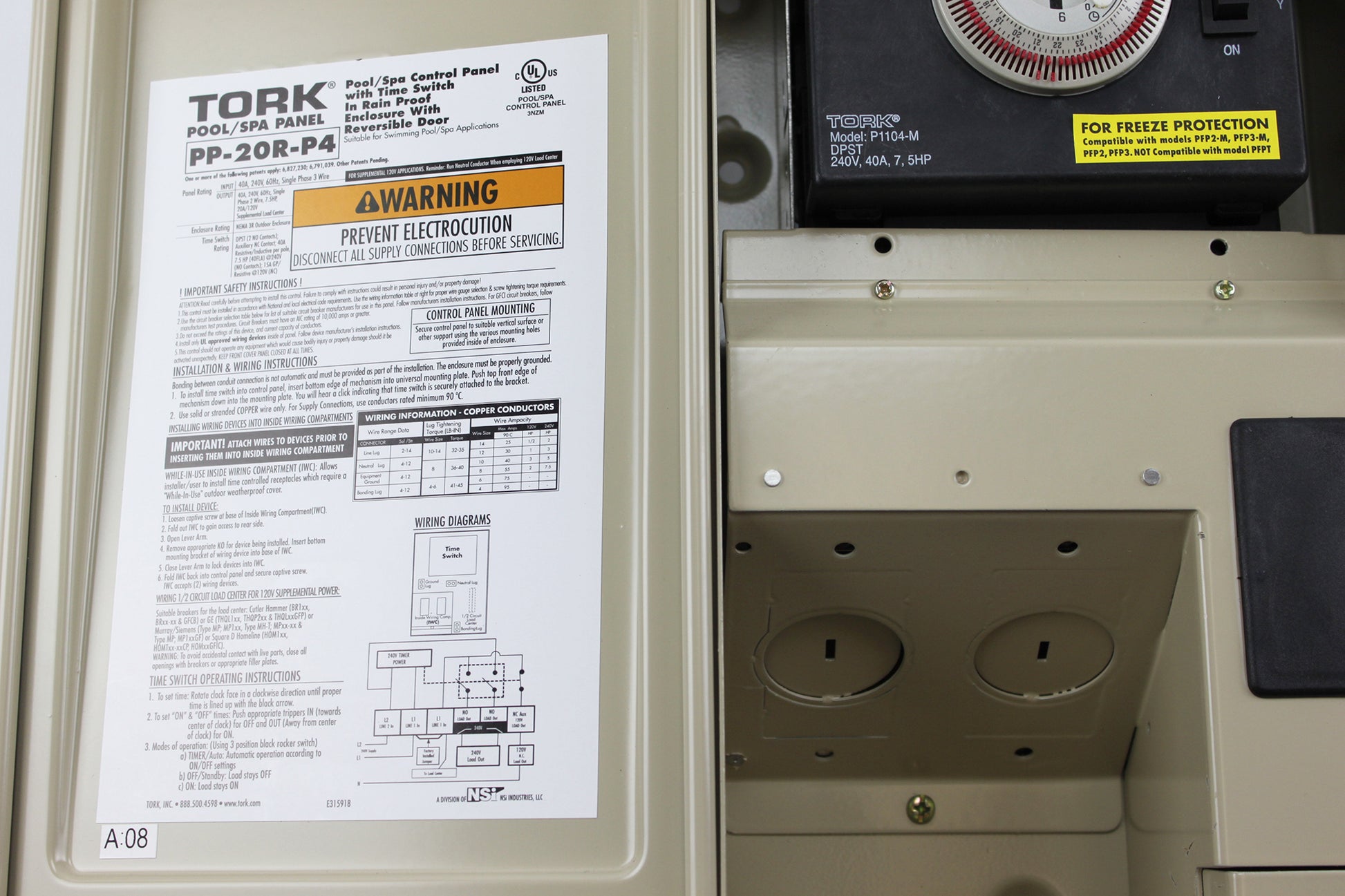

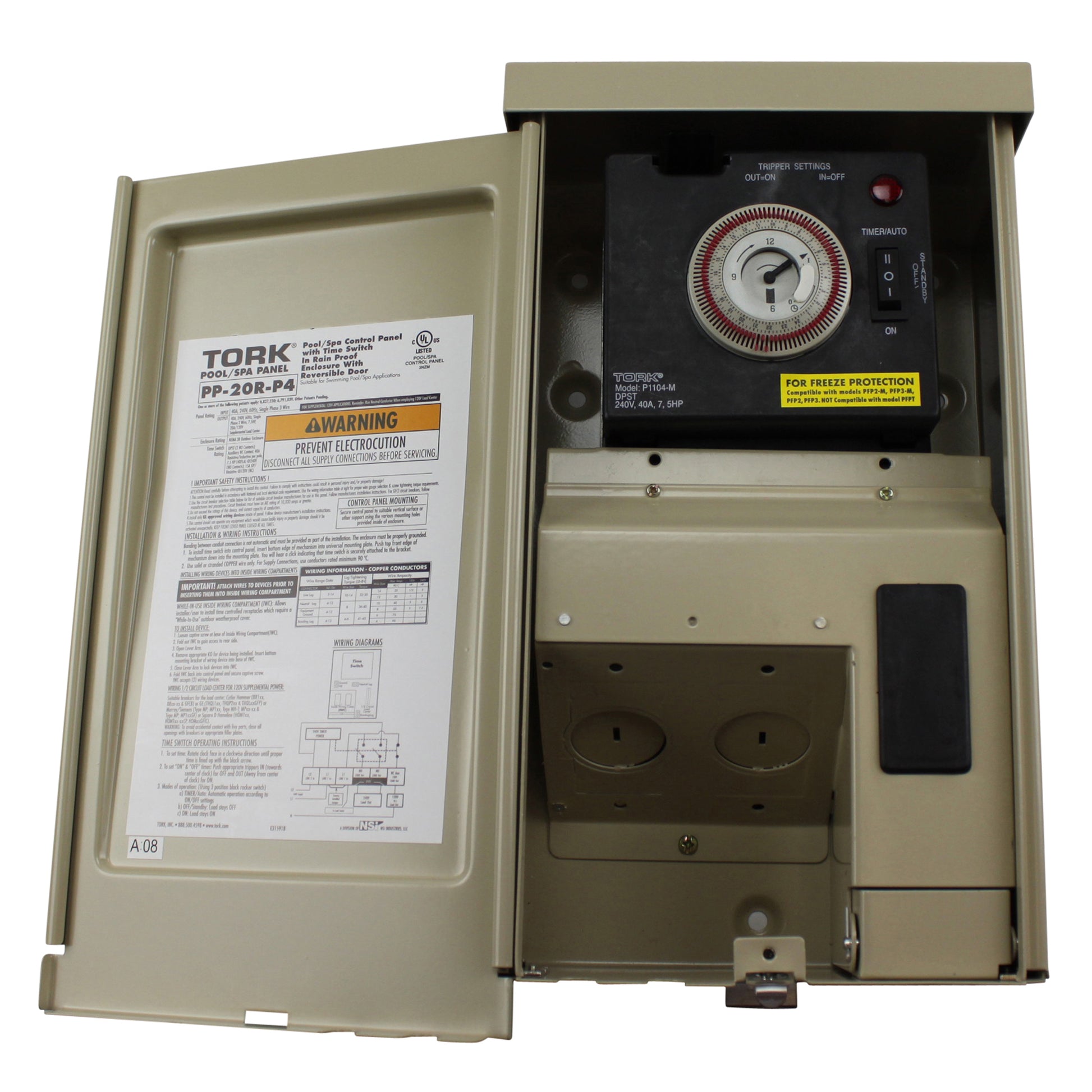

TORK NSI PP-20R-P4 TIMER POWER PANEL FOR POOL, SPA, LIGHTING, 40A, 120/240V

Features:

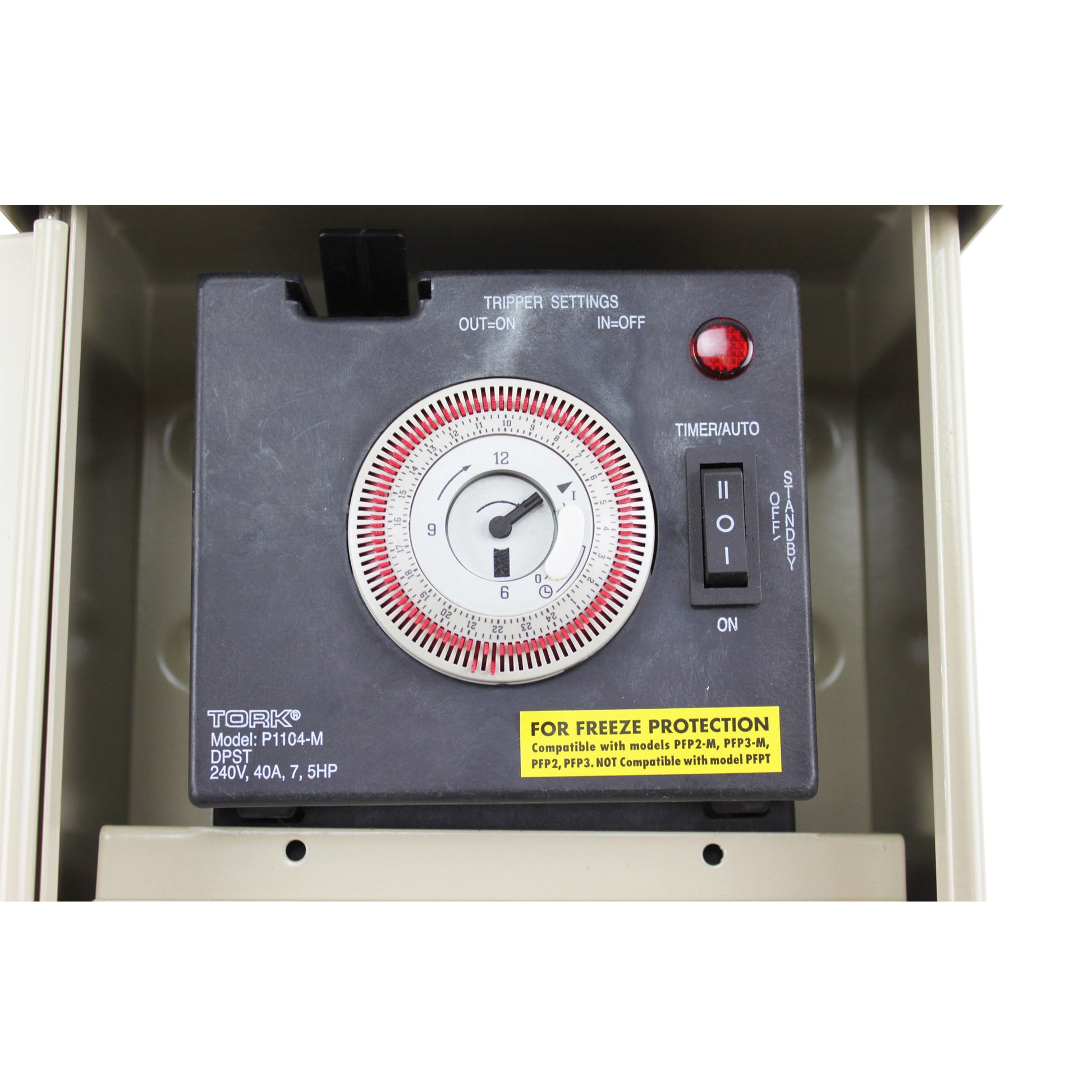

• Time Switch type: P1104-M (Mechanical) 24-Hour, 15 minute time increments

• 240V, 40A, 7.5HP, DPST (2) NO Contacts, (1) Auxiliary NC Contact

• Panel Rating: Input: 40A, 120/240V, 6-Hz, Single Phase 3 Wire

• Panel Rating: Input: 40A, 240V, 60Hz, Single Phase 2 Wire, 3HP, 20A/120V Supplemental Load Center

• *** OPTIONAL FREEZE PROTECTION MODULE SOLD SEPERATELY ***


• COMBINATION PANEL: The PP panel series provides a flexible platform to create a custom pool and spa control at an off the shelf price. Start with a blank panel and addtimers, freeze controls, circuit breakers, switches and outlets for a custom installation. Or select a pre-assembled timer/panel available in many popular combinations. PP-10R: 15 amp timed GFCI protected outlet with additional GFCI outlet. PP-20R: 20 amp load center 120-240V, 1/2 circuit breaker base. PP-100R: 100 amp load center 120-240V, 5/10 circuit breaker base. PP-125R: 125 amp load center 120-240V, 8/16 circuit breaker base. CONTROLS: Freeze protection or mechanical and digital timers are all available with unique features not found elsewhere in the industry

Color: Beige

Condition: New

Dims: -Inches x -Inches x -Inches (Length Width Height)

Model: PP-20R-P4

Package quantity: 1
