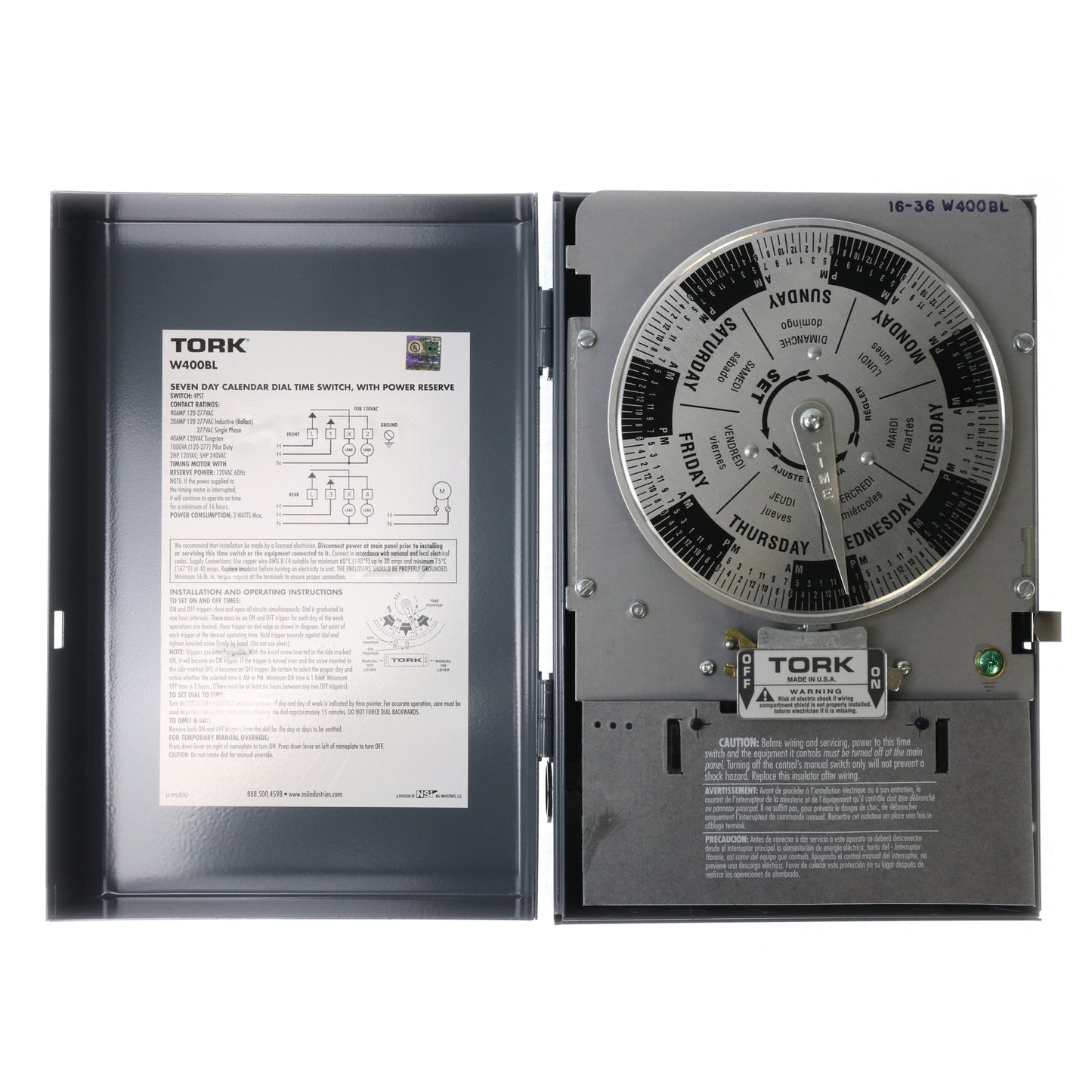

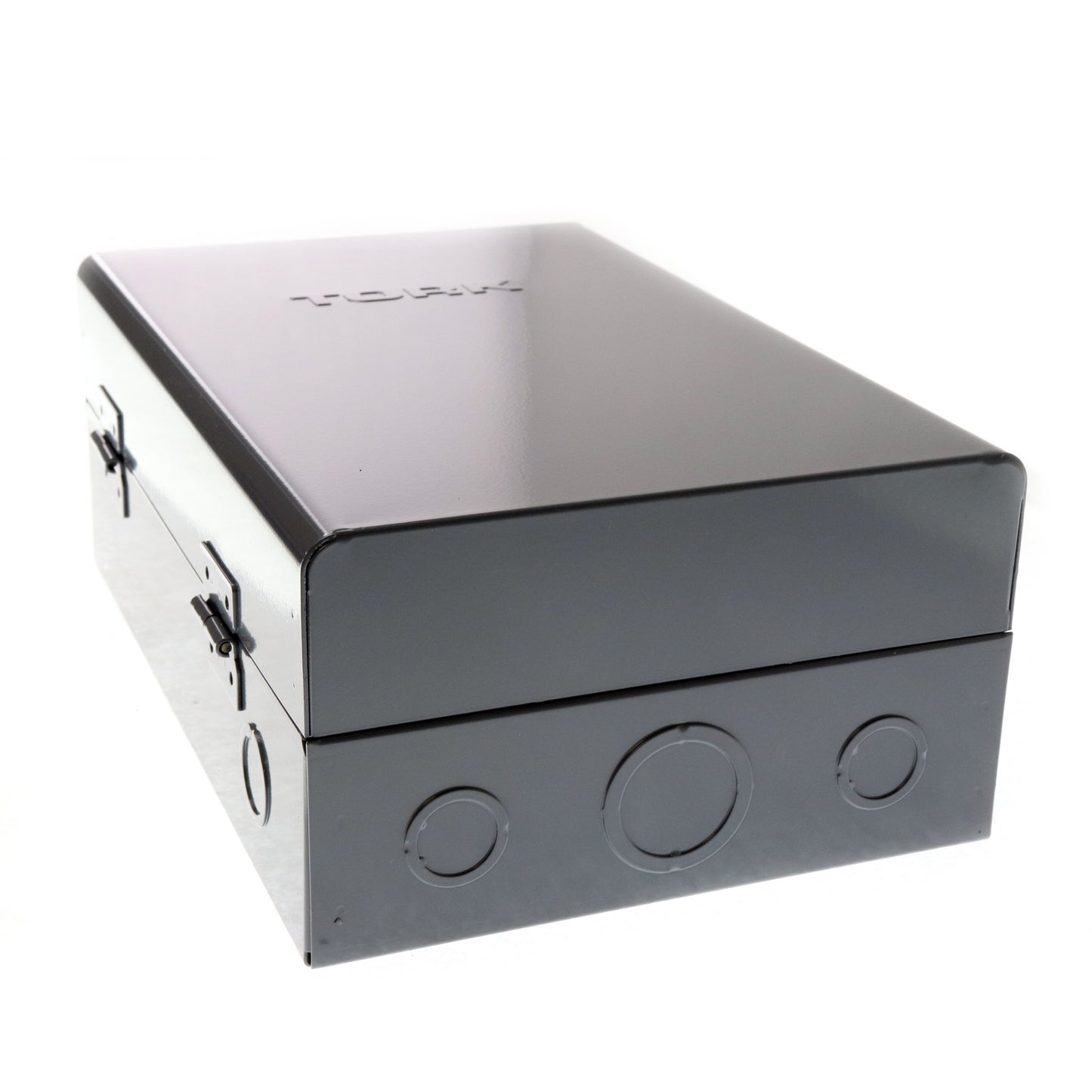

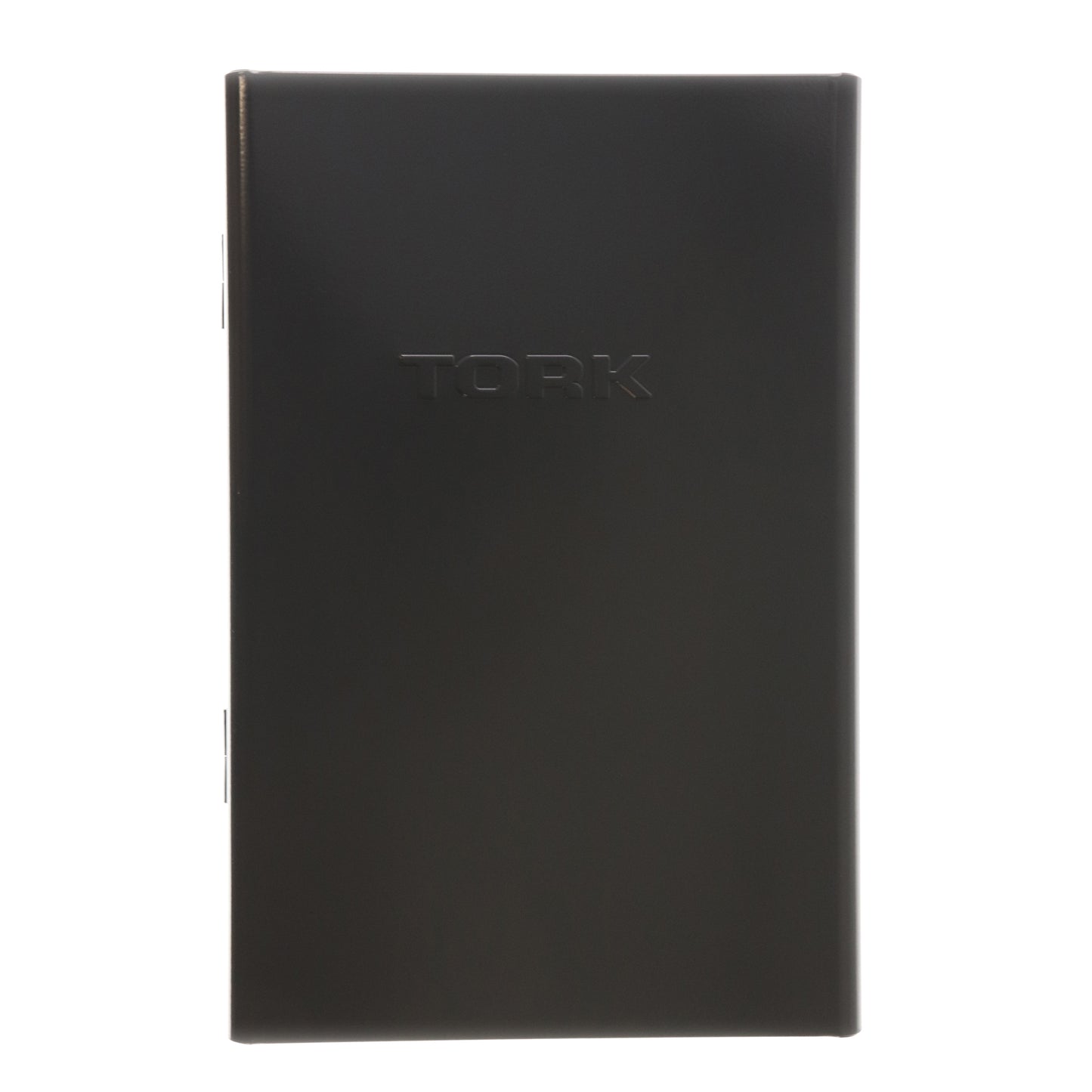

TORK NSI W400BL MECHANICAL TIME SWITCH, 7-DAY, NEMA-1, 120/240/277V, 40A, 4PST

Features:

• 120 Volt 40 Amp

• Four Pole Single Throw

• 7 Day Mechanical Timer with Reserve Power

• NEMA 1 Indoor enclosure

• Gray


• Tork W400BL 7 Day 4PST Mechanical Time Switch with Reserve PowerAPPLICATIONS:Heating, Air Conditioning, Display Lighting, Ventilating Systems, Lighted Signage, Storefront Lighting FEATURES:INPUT VOLTAGE: 120 VAC 60 Hz OUTPUT CONTACTS: 4PST TIMING ACCURACY: Line frequency TERMINAL RANGE: #8 - #14 AWG OPERATING TEMPERATURE: -40 degrees to 165 degrees F (-40 degrees to +74 degrees C) POWER CONSUMPTION: 3 watts maximum SCHEDULING: Minimum ON setting is 1 hour with a minimum OFF setting of 2 hours. Minimum 8 hours between 2 OFF settings. 7 day calendar dial accommodates up to 2 pairs of ON/OFF trippers per day - 7 pairs are supplied. TRIPPERS: Comes with (7) pairs of trippers (7 ON and 7 OFF). Additional trippers can be purchased under Part # P69i. SKIP-A-DAY: Omit operations on any day. MANUAL OVERRIDE: Until the next regularly scheduled ON or OFF automatic operation then resumes. RESERVE POWER: Keep dial on time up to 24 hours during power outage. ENCLOSURE: Lockable hasp. Metal Indoor NEMA 1 BRAND EQUIVALENT: Intermatic T7501BC MANUFACTURER: Tork PART NUMBER: W400BL UPC: 786261390080 CONTACT RATINGS:GENERAL PURPOSE: 120 VAC Single Phase. Contact Rating 40A RESISTIVE: 120 VAC Single Phase. Contact Rating 40A TUNGSTEN: 120 VAC. Contact Rating 40A INDUCTIVE: 120 VAC Single Phase. Contact Rating 20A PILOT DUTY: 120 VAC. Contact Rating 1000VA MOTOR: 120 VAC. Contact Rating 2HP We have timers to fit your every need, with the best selection and prices.

Color: Gray

Condition: New

Dims: 9.50-Inches x 13.00-Inches x 5.00-Inches (Length Width Height)

Model: W400BL

Package quantity: 1

VWA: 120-Volt 40-Amps
